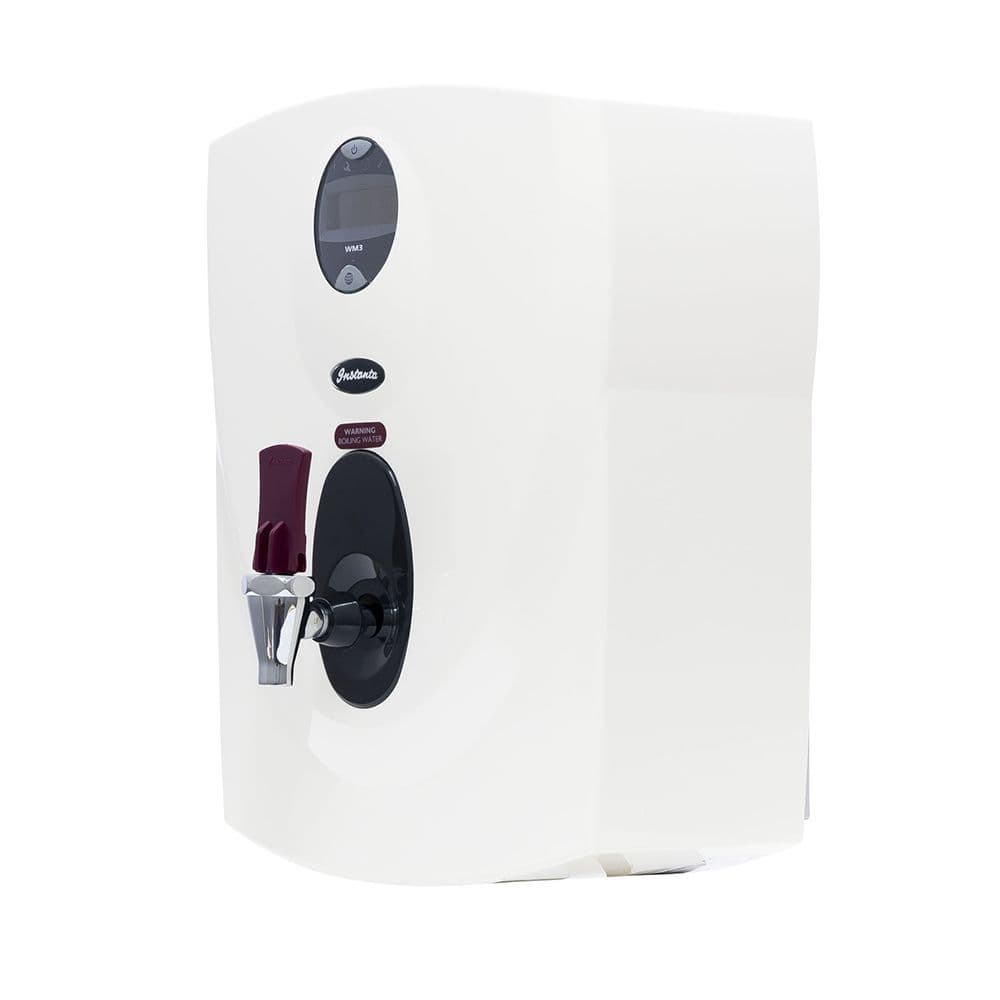

Instanta WMSP3W SureFlow Plus Wall Mounted 3Ltr White (WM3)

£482.33ex VAT
(£578.80 inc VAT)
RRP: £730.80
Stock Status: Sold Out
Key Features
332 x 210 x 452 mm (WxDxH)
Wall Mounted
Rapd Draw Off : 3 Ltrs (18 cups)
Hourly Output : 28 Ltrs (168 cups)
Instanta WMSP3W SureFlow Plus Wall Mounted 3Ltr White (WM3) £482.328
Stock Status: Sold Out
Key Features
332 x 210 x 452 mm (WxDxH)
Wall Mounted
Rapd Draw Off : 3 Ltrs (18 cups)
Hourly Output : 28 Ltrs (168 cups)
Out of stock but due in soon
Information
PDF Downloads

Delivery

Free UK Mainland : 2 - 5 working days

NEXT WORKING DAY DELIVERY Options to include anytime or AM deliveries - call for details - Orders must be received before 12pm.

Guarantee

2 year manufacturers full warranty included




Features and Benefits
· Integral 7 day programmable timer
· Programmable filter change indicator
· Electronic temperature control, programmable between 80°C - 98°C
· Comprehensive diagnostics system

Installation
As per instructions supplied.

Plumbing
Designed for direct connection to a potable cold water supply using the fittings supplied. An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a rear connection and overflow and requires two bar incoming water pressure.

Electrical
To be connected to 230 volt 13 amp or 30 amp (6kW) supply.

Construction
Stainless steel or impact resistant thermoplastic case.
Stainless steel heating chamber.
Low voltage switching.
2 safety cut-outs.


Approvals
WRAS approved.

SELECTED FEATURES

Electronic programmable temperature control (80°C - 98°C)
Integral 7-day programmable timer
Energy saving ECO mode
Over-fill protection against limescale
Long-life incoloy elements
Boil dry protect
Insulated for minimal heat loss
Easy install

SPECIFICATION FOR WMSP3W Wall Mounted SureFlow

Height (mm)
452
Width (mm)
332
Depth (mm)
210
Tap Depth (mm
90

TECHNICAL DATA FOR WMSP3W Wall Mounted SureFlow*

Power loading (kW)
3
Heat-up time (mins)
11
Recovery Rate (litres)
0.5
Rapid Draw-Off (litres)
3
Rapid Draw-Off (cups)
18
Hourly Output (litres)
28
Hourly Output (cups)
168
Stand by Loss (kW/h)
0.1
* Based on 6 Cups Per Litre
Specifications
  • Product Code:
    WMSP3W
  • Design:
    Single tap
  • Type:
    Water Boiler - Wall Mounted
  • Hourly Output:
    28 Ltrs (168 cups)
  • Rapid Draw Off:
    3 Ltrs (18 cups)
  • Security:
    Built in water filter
  • Power:
    Single phase - Hard wired
  • Standard Delivery:
    2 - 3 working days - postcode dependent
  • Next Working Day:
    Order before 12 noon today and receive next working day (mon to Friday) - Optional Upgrade
