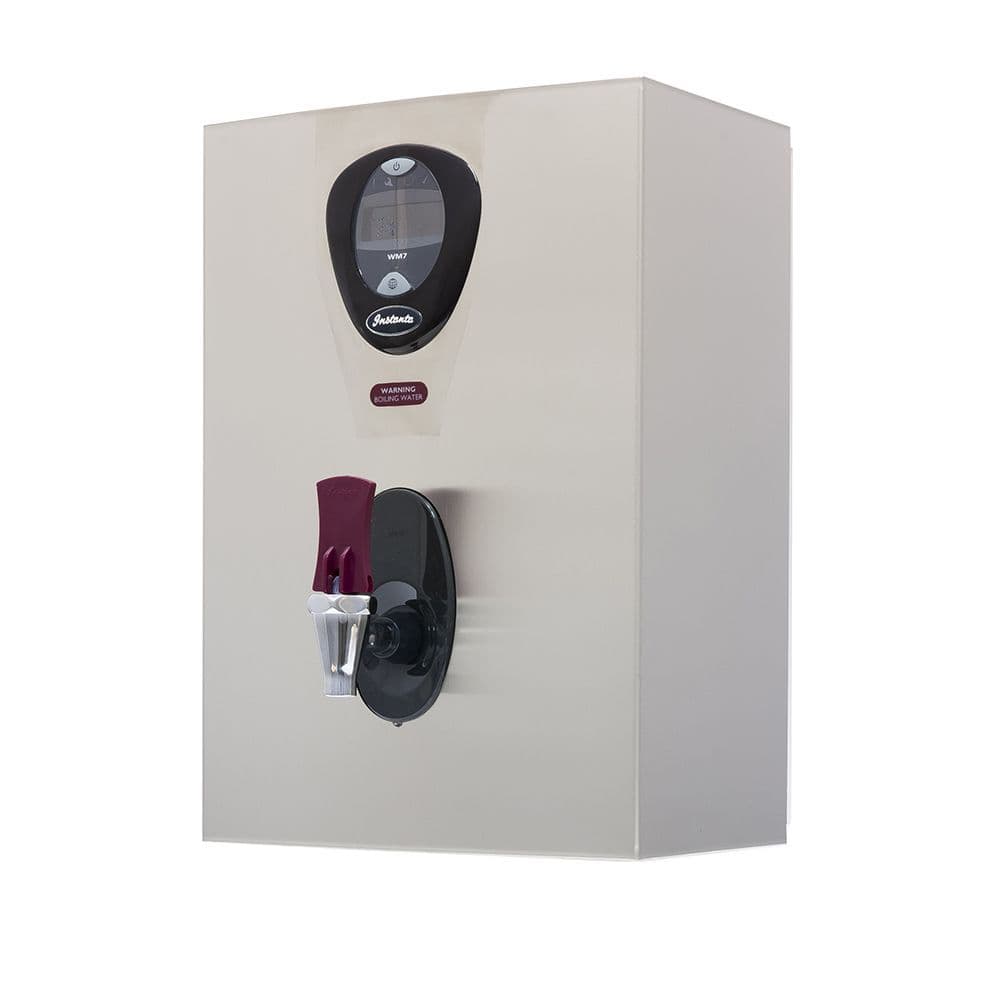

Instanta WMSP3 SureFlow Plus Wall Mounted 3Ltr (WM3SS)

£543.31ex VAT
651.97 inc VAT)
RRP: £823.20
Key Features
314 x 215 x 414 mm (WxDxH)
Wall Mounted
Rapd Draw Off : 3 Ltrs (18 cups)
Hourly Output : 28 Ltrs (168 cups)
Key Features
314 x 215 x 414 mm (WxDxH)
Wall Mounted
Rapd Draw Off : 3 Ltrs (18 cups)
Hourly Output : 28 Ltrs (168 cups)
Information
PDF Downloads


Delivery

Free UK Mainland : 2 - 5 working days

NEXT WORKING DAY DELIVERY Options to include anytime or AM deliveries - call for details - Orders must be received before 12pm.


Guarantee

2 year manufacturers full warranty included





Features and Benefits
· Integral 7 day programmable timer
· Programmable filter change indicator
· Electronic temperature control, programmable between 80°C - 98°C
· Comprehensive diagnostics system


Installation
As per instructions supplied

Plumbing
Designed for direct connection to a potable cold water supply using the fittings supplied. An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a choice of connection through rear or from beneath and require 2 bar incoming water pressure.


Electrical
To be connected to 230 volt 13 amp
or 30 amp (6kW) supply.


Construction
Stainless steel or impact resistant thermoplastic case.
Stainless steel heating chamber.
Low voltage switching.
2 safety cut-outs.


Approvals
WRAS approved.

SELECTED FEATURES

SPECIFICATION FOR WMSP3 Wall Mounted SureFlow

Height (mm)
414
Width (mm)
314
Depth (mm)
215
Tap Depth (mm
90

TECHNICAL DATA FOR WMSP3 Wall Mounted SureFlow*

Power loading (kW)
3
Heat-up time (mins)
11
Recovery Rate (litres)
0.5
Rapid Draw-Off (litres)
3
Rapid Draw-Off (cups)
168
Rapid Draw-Off (cups)
18
Hourly Output (litres)
28
Stand by Loss (kW/h)
0.1
* Based on 6 Cups Per Litre
Specifications
  • Product Code:
    WMSP3
  • Type:
    Water Boiler - Wall Mounted
  • Hourly Output:
    28 Ltrs (168 cups)
  • Rapid Draw Off:
    3 Ltrs (18 cups)
  • Security:
    Built in water filter
  • Power:
    Single phase - Hard wired
  • Standard Delivery:
    2 - 3 working days - postcode dependent
  • Next Working Day:
    Order before 12 noon today and receive next working day (mon to Friday) - Optional Upgrade
  • Design:
    Single tap
