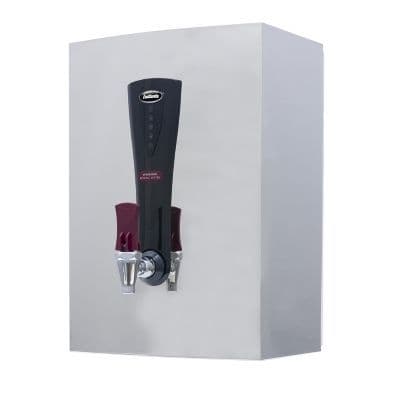

Instanta WMS10 SureFlow Wall Mounted 10Ltr (WA10N)

£591.35ex VAT
709.62 inc VAT)
RRP: £852.60
Stock Status: Sold Out
Key Features
340 x 247 x 480 mm (WxDxH)
Wall Mounted
Rapd Draw Off : 10 Ltrs (60 cups)
Hourly Output : 27 Ltrs (162 cups)
Stock Status: Sold Out
Key Features
340 x 247 x 480 mm (WxDxH)
Wall Mounted
Rapd Draw Off : 10 Ltrs (60 cups)
Hourly Output : 27 Ltrs (162 cups)
Out of stock but due in soon

Information
PDF Downloads


Delivery

Free UK Mainland : 2 - 5 working days

NEXT WORKING DAY DELIVERY Options to include anytime or AM deliveries - call for details - Orders must be received before 12pm.


Guarantee

1 year manufacturers full warranty included





Features and Benefits
· Introductory diagnostic system
· Three models available
· Large heavy duty non-drip taps
· Mirror finished stainless steel case


Installation
As per instruction manual supplied.


Plumbing

Designed for direct connection to a potable cold water supply using fittings supplied.An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a rear connection and overflow and requires two bar incoming water pressure.


Electrical
To be connected to 230 volt 13 amp supply.


Construction
Polished stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut outs.


Approvals
WRAS approved.

SELECTED FEATURES

Mirror finish stainless steel case
Over-fill protection against lime-scale
Boil dry protection
Insulated for minimal heat loss
Easy service and cleaning access
Basic fault self-diagnosis
Long-life incoloy elements

SPECIFICATION FOR WMS10 InstaTap Wall Mounted SureFlow

Height (mm)
480
Width (mm)
340
Depth (mm)
247
Tap Depth (mm
85

TECHNICAL DATA FOR WMS10 InstaTap Wall Mounted SureFlow*

Power loading (kW)
3
Heat-up time (mins)
30
Recovery Rate (litres)
0.5
Rapid Draw-Off (litres)
10
Rapid Draw-Off (cups)
60
Hourly Output (litres)
27
Hourly Output (cups)
162
Stand by Loss (kW/h)
0.1
* Based on 6 Cups Per Litre
Specifications
  • Product Code:
    WMS10
  • Type:
    Water Boiler - Wall Mounted
  • Hourly Output:
    27 Ltrs (162 cups)
  • Rapid Draw Off:
    10 Ltrs (60 cups)
  • Power:
    Single phase - Hard wired
  • Standard Delivery:
    2 - 3 working days - postcode dependent
  • Next Working Day:
    Order before 12 noon today and receive next working day (mon to Friday) - Optional Upgrade
  • Design:
    Single tap
